VPM-8L, Vertical, 8 inch (200 mm) Diameter, LED Signal, Stackable



VPM-8L-hood.

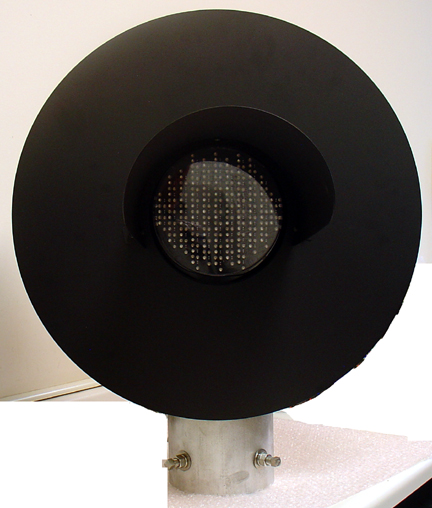

The VPM-8L is a vertical signal fixture which utilizes the single or multicolor GEMSTAR ARRAY, which is an 8 inch LED array light. The unit will individually show all necessary colors: green, yellow, red, white as required.  Your choice of aluminum, steel, or stainless steel construction. The unit opens in the rear for ease of maintenance and is configured with an AAR terminal, hood, and background. This product can also be ordered with the 1 color, 2 color, 3 color and 4 color GEMSTAR ARRAY with available colors of red, yellow, green, blue and white.  Light out capability per AREMA specifications is available in the Light Out versions of the Gemstar Arrays.





VPM-8L-side.

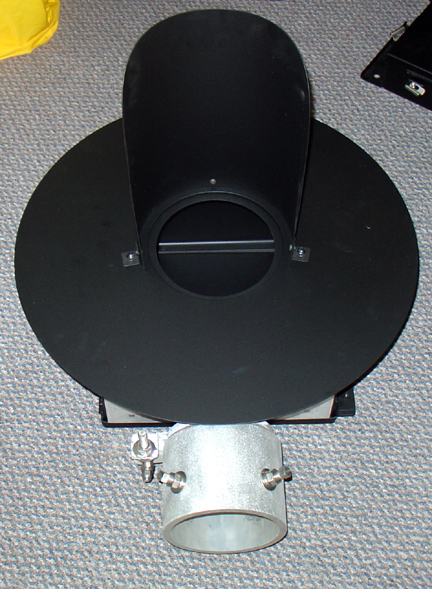

VPM-8L-down.
VPM-8L hood with pole mount

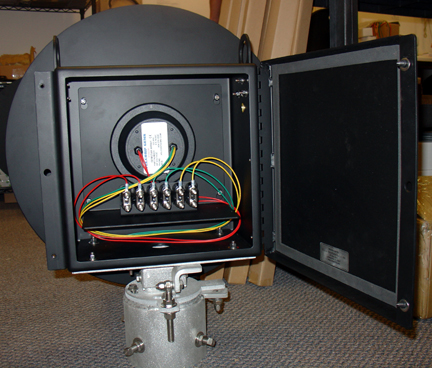

VPM-8L-back.
VPM-8L back view

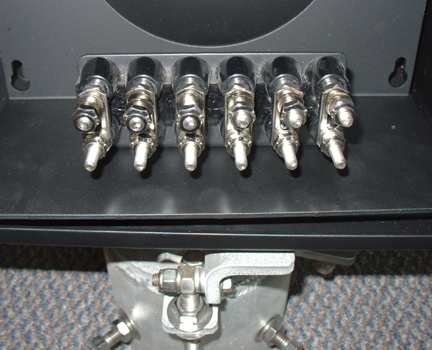

VPM-8L-AAR.
VPM-8L  AAR connectors

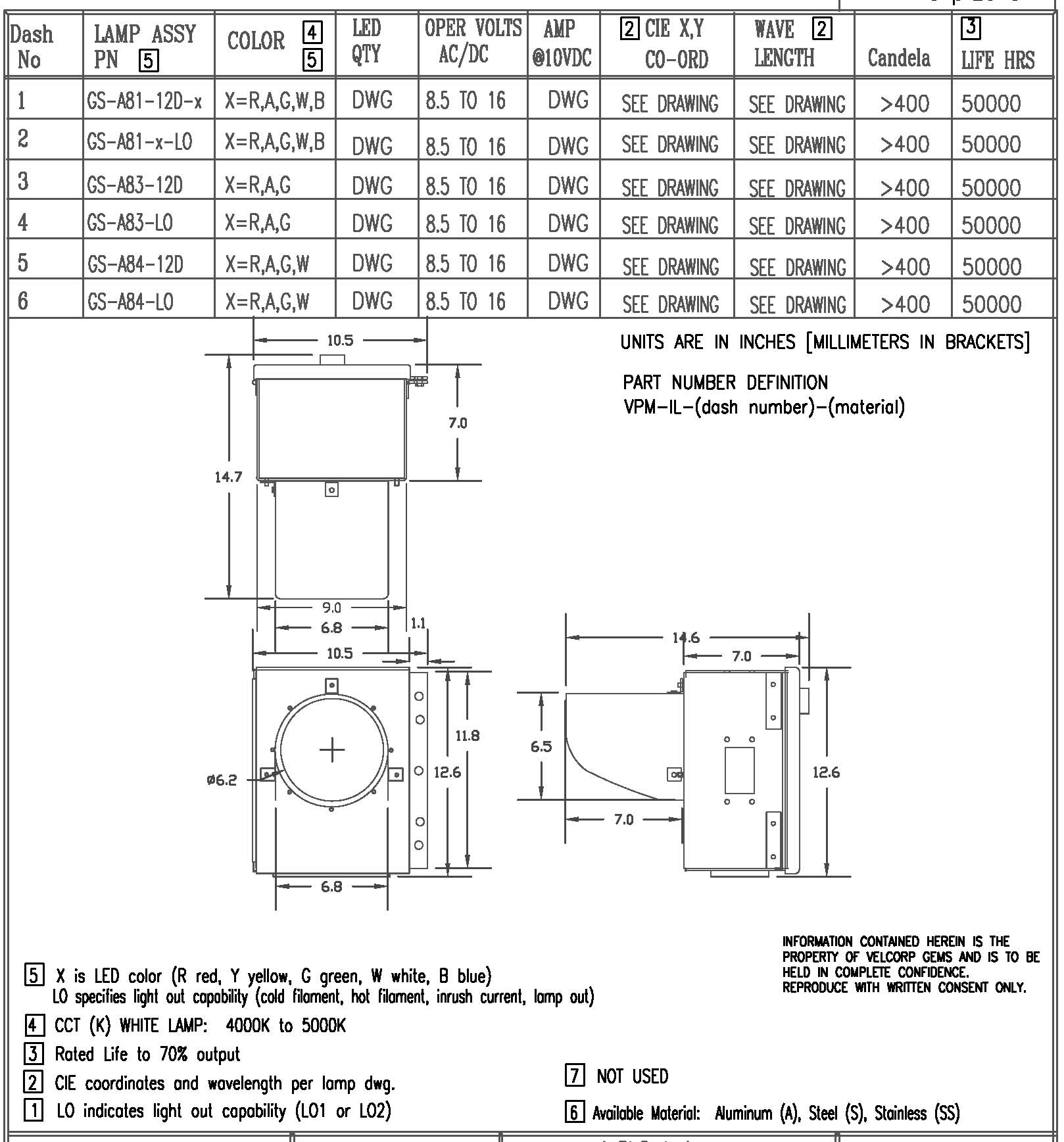

Cover_VPM-1L_A.02.
   *Background not shown on drawing
     Material:  aluminum, stainless steel, steel


GS-A84-LO1.
 4 color Gemstar Array
GS-A84-LO


CALL FOR PRICING  904-230-2840
