Tubestar LED Lamp, AC Model, Internal and External Power Supply

LED REPLACEMENT FOR FLUORESCENT LIGHTING, nominal 120VAC,
with Internal or External Power Supply

Lower Energy Costs and Longer Life than CFL
Certifications: LED Tube - UL, CE, FCC, Fixture - UL

Tubestar is an LED replacement lamp for florescent fixtures. It is designed for rail transportation bungalow use or use in a commercial/industrial workspace or warehouse. The units are also excellent lighting for cab or transit cars. The Tubestar has been designed to provide pure white light to give true color viewing. Tubestar is available with an LED tube and holding fixture for direct installment in sizes from 1 ft (.3m) to 6 ft (1.8m). It is also available as a direct replacement tube in an existing florescent lighting fixture. The LED tube may have an internal or external power supply/driver, and depending upon whether the existing ballast is electromagnetic or electronic, wiring modifications may be required. Special LED tubes (with internal drivers) are also available that may be mounted directly in the original florescent fixtures with an EM ballast without cutting wires or replacing the starter/ballast. Tubestars may be ordered with an RF filter installed to eliminate unwanted radio interference.

TUBESTAR (AC Model) - DIRECT MOUNTING IN TL-LH FIXTURE (T8 Tube)

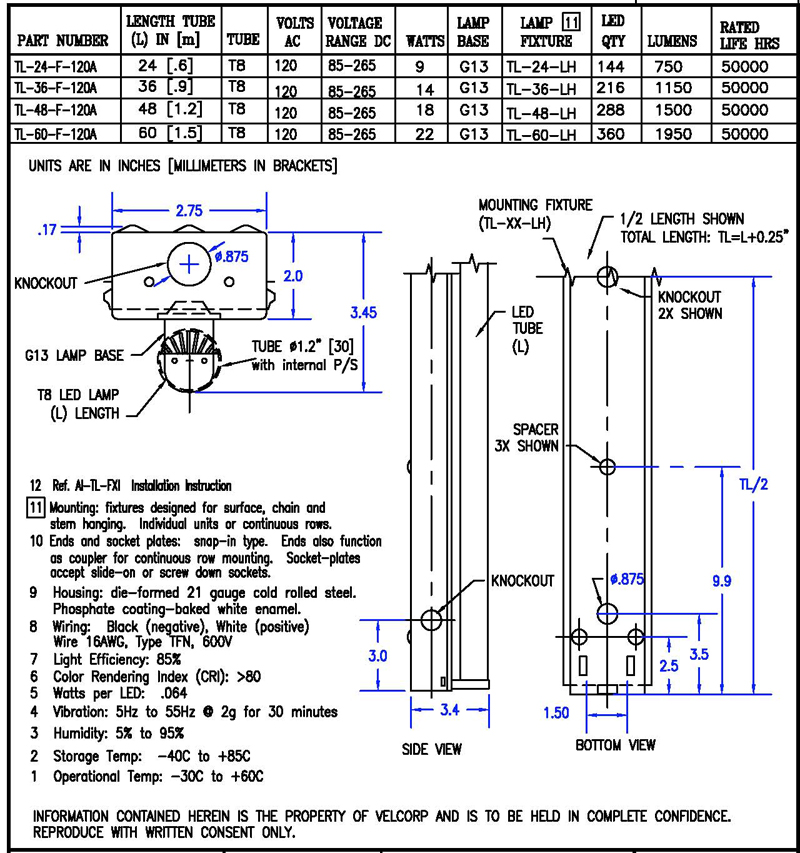

TL-xx-F-120A LED Tubestar Lamp,
30mm diameter, T8, Internal Power Supply
xx = length ( 24, 36, 48, 60 inches)

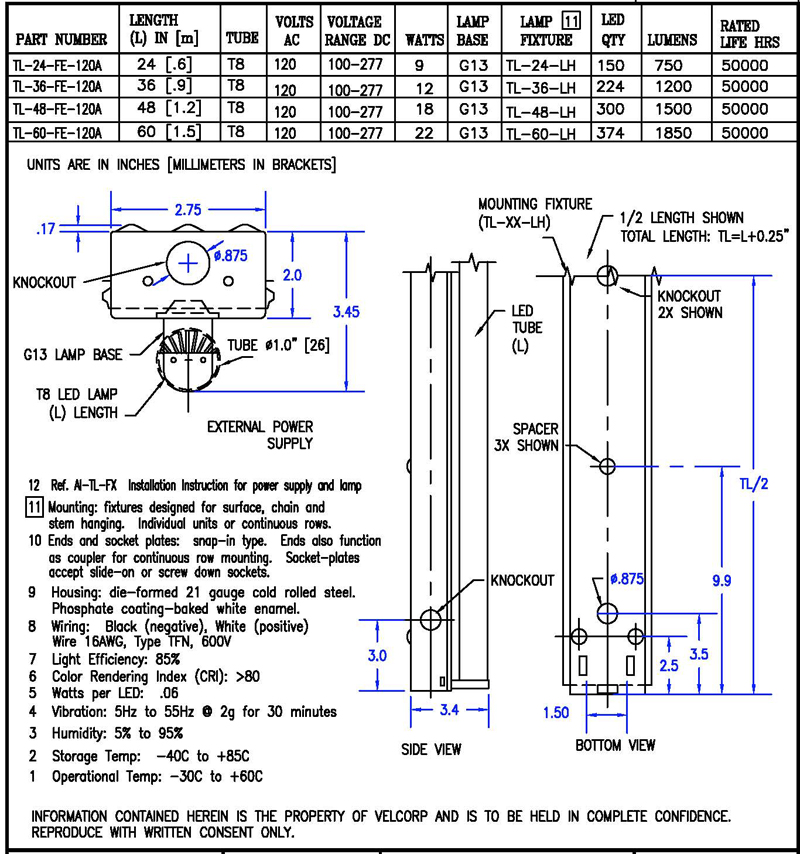

TL-xx-FE-120A Tubestar Lamp with
External Power Supply

TL-xxLH Tubestar Mounting Fixture

TL-xxLH Tubestar Mounting Fixture

TUBESTAR - MOUNTING IN EXISTING FLUORESCENT FIXTURE WITH ELECTRONIC BALLAST

LED tube (T8) with external driver/power supply mounting in fixture

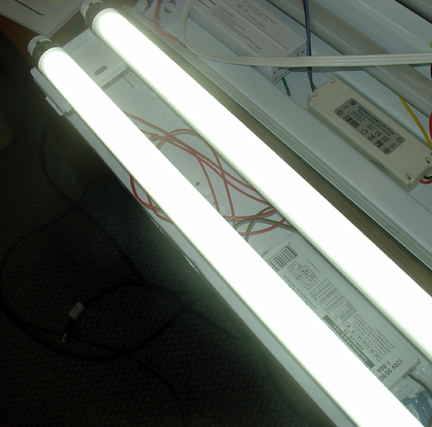

MOUNTING: LED Tube mounted into existing fluorescent fixture with external driver. Note: Electronic ballast disconnected and LED driver/power supply connected

LED Tube with LED Driver Kit

TUBESTAR - MOUNTING IN EXISTING FLUORESCENT FIXTURE WITH MAGNETIC BALLAST - (Wire Mod.)

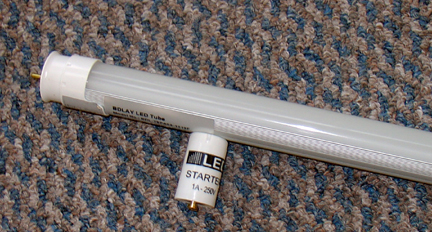

(1) LED Tube (internal driver/power supply) with LED Starter Kit

(1) MOUNTING (LED tube with internal power supply) - Left Photo: LED Tube mounted into existing Electromagnetic Fluorescent Fixture with replacement LED starter. Note: Magnetic ballast does not require disconnection.

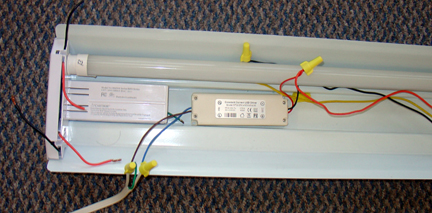

(2) MOUNTING (LED tube with external power supply) - Right Photo: LED Tube mounted into existing Electromagnetic Fluorescent Fixture with replacement LED power supply. Note: Magnetic ballast disconnected and starter shorted.

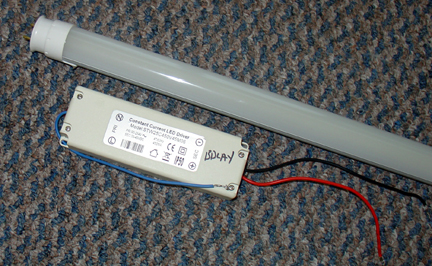

(2) LED Tube (external driver/power supply) with LED Power Supply/Driver Kit

TUBESTAR - MOUNTING IN EXISTING FLUORESCENT FIXTURE WITH MAGNETIC BALLAST - (No Wire Mod.)

LED tubes with internal driver/power supply, T8, (30mm OD). Direct replacement of fluorescent tube without cutting wires.

MOUNTING: Special LED Tubes may be mounted directly into existing Electromagnetic fluorescent fixtures. EM ballast and starter do not require disconnection.

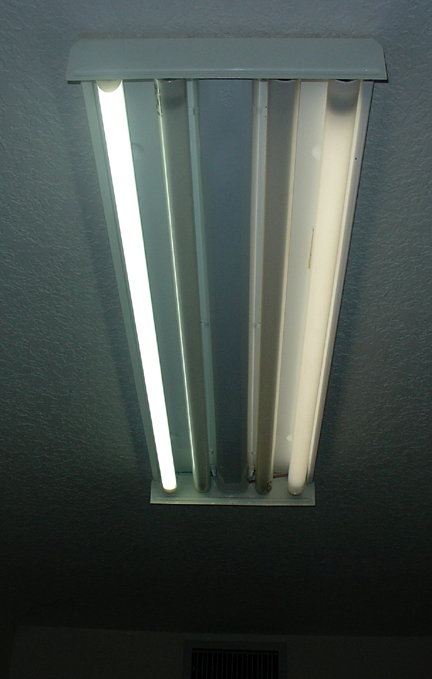

NOTE: 48" LED Tube is located on far left of photo (hallway fixture) located on right. The 3 tubes to right of LED tube are fluorescent lamps with approx. same operating hours greater than 1 year.

Tubestar lamps and fixtures are available in lengths from 12 inches to 72 inches and lamp color temperatures from cool white to warm white.

INTERNAL POWER SUPPLY TO LED TUBE - for Direct Mounting in TL-LH Fixture

EXTERNAL POWER SUPPLY TO LED TUBE - for Direct Mounting in TL-LH Fixture

CALL FOR PRICING 904-230-2840
