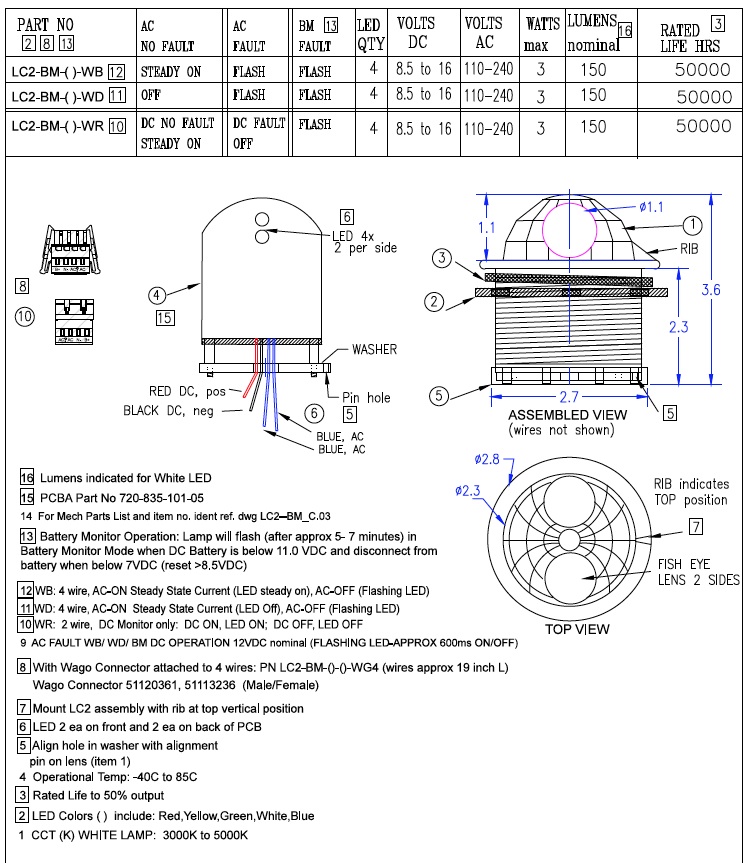

LC2-BM-WB/WD (4 wire) Pigtail wire leads	LC2-BM-WB/WD-WG4            with Wago connector
LC2-BM-WR (2 wire) Pigtail and also available with Wago	LC-2EY

This Power Indicator monitors either 120 or 240 VAC and operates off nominal 12 VDC.

With AC power present the WB model light is on steady.

With AC power present the WD model shows no light.

With the loss of AC power the LED light is flashing for both models.

The units come with a facetted optically enhanced water tight dual fisheye lens assembly, and may be ordered with 4 position Wago connector.

Battery Monitor circuit monitors battery DC Voltage and alerts when battery level falls below 11VDC.

If the DC battery level falls below 11 VDC for 5 minutes, the LC2-BM -WB/WD will start flashing, indicating low DC battery level.  The LC2-BM-WB/WD light will return to normal operation once DC battery is above 11VDC.

Power Indicator operating off of DC power system.  Monitors DC power on with steady LED light.
8.5 to 16 VDC Operation.  Nominal power 12VDC.

Battery Monitor circuit monitors battery DC Voltage and alerts when battery level falls below 11VDC.

The light is off with DC power off or below 11 VDC after 5 minutes. Designed to operate with an Event Recorder.
The unit comes with a facetted optically enhanced water tight dual fisheye lens assembly, and may be ordered with 2 position Wago connector.

LEDs available in Red, Yellow, Green, Blue and White.
All the assembly parts can be ordered seperately.
