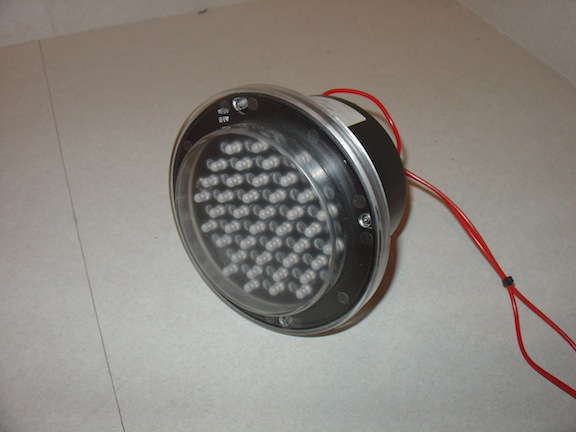

Gemstar Array 5 inch (127 mm) Diameter LED Signal Lamp - NO LIGHT OUT

GS-A51-( )-12V      5 in diam, single color Gemstar Array in yellow, green, red, blue or white, 12V DC or AC

GS-A51-( )-120A-PS    5 in diam, single color Gemstar Array in yellow, green, red, blue or white, 120 VAC

GS-A51-( )-12V-ARW  5 in diam, single color Gemstar Array in yellow, green, red, blue or white,12V DC or AC

GS-A51-( )-120A-PS-ARW, ARWZ  5 in diam, single color Gemstar Array in yellow, green, red, blue or white, 120 VAC



GS-A51-( )-12V ( 8.5-16V AC or DC operation),

GS-A51-( )-120A-PS  (80-140 VAC operation),  No Light Out Capability

50,000 hour Life
Black solder mask background
Stone Finish Lens, Clear PMMA
2 wire termination
Operational temp: -40C to 70C
41  LEDs, 5 mm
Nominal voltage: 12V DC or AC for GS-A51-( )-12V and 120VAC for GS-A51-( )-120A-PS
Available LED Colors: White (W), Red (R), Green (G), Yellow (Y), Blue (B)

Weight .5 lb

             GS-A51-( )-12V




             GS-A51-( )-120A-PS



GS-A51-12V-PS-ARW   (8.5 - 20 VDC) or  GS-A51-120A-ARW (80-140 VAC operation),  No Light Out Capability

50,000 hour Life
Black solder mask background
Stone Finish Lens, Clear PMMA
2 wire termination
Operational temp: -40C to 70C
37  LEDs, 5 mm, water clear
Nominal voltage: 12VDC or 120VAC
Available LED Colors: White (W), Red (R), Green (G), Yellow (Y), Blue (B)

Weight .5 lb

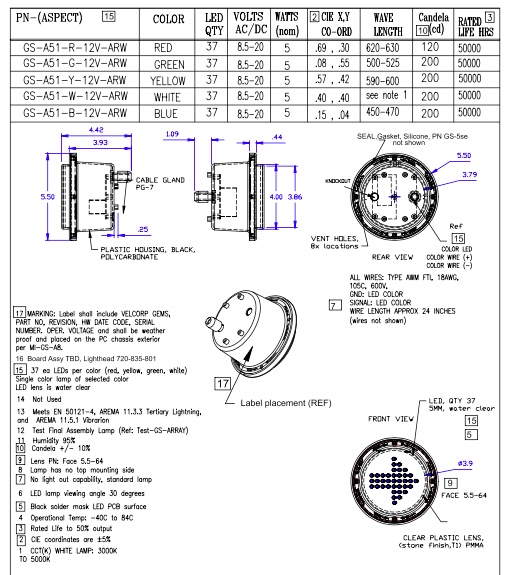

GS-A51-12V-ARW

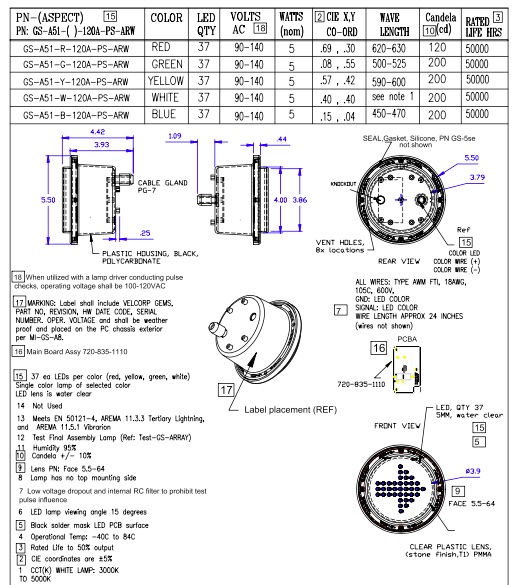

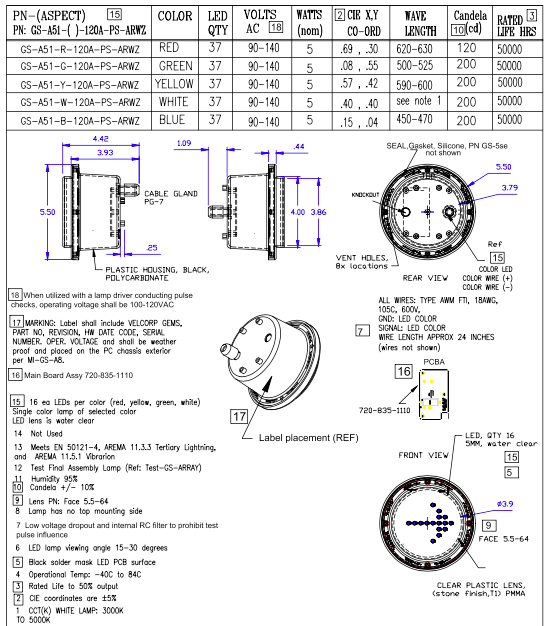

GS-A51-120A-PS-ARW, GS-A51-120A-PS-ARWZ






CALL FOR PRICING  904-230-2840
