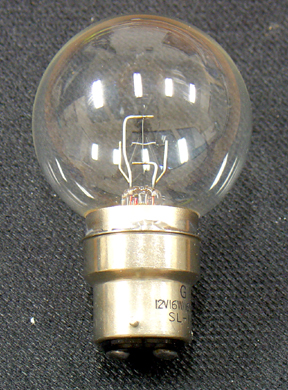

Incandescent Lamp, Dual Filament, Dual Contact, 3 pin
 SL-17, SL21, SL-34, SL-35, 3 Pin

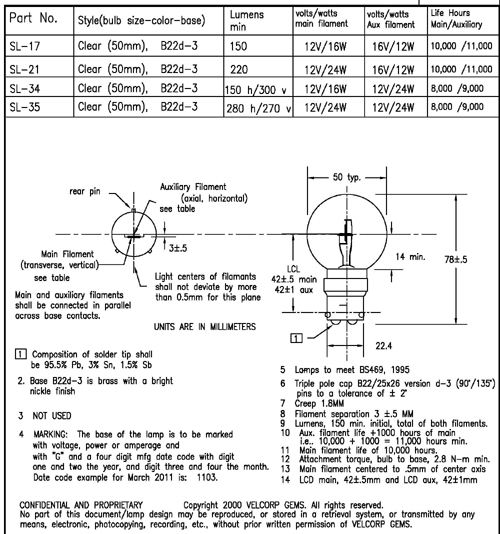

See Drawing Below
|
SL-17 12V DC/AC 16W Main Filament 16V DC/AC 12W Aux Filament 10,000/11,000 hour Rated Life Bulb Clear 50mm Bayonet Base B22D-3, Brass, Bright Nickel Finish 150 Lumens minimum SL-21 12V DC/AC 24W Main Filament 16V DC/AC 12W Aux Filament 10,000/11,000 hour Rated Life Bulb Clear 50mm Bayonet Base B22D-3, Brass, Bright Nickel Finish 220 Lumens minimum SL-34 12V DC/AC 16W Main Filament 12V DC/AC 24W Aux Filament 8,000/9,000 hour Rated Life Bulb Clear 50mm Bayonet Base B22D-3, Brass, Bright Nickel Finish 150 Lumens minimum horizontal 300 Lumens minimum vertical SL35 12V DC/AC 24W Main Filament 12V DC/AC 24W Aux Filament 8,000/9,000 hour Rated Life Bulb Clear 50mm Bayonet Base B22D-3, Brass, Bright Nickel Finish 280 Lumens minimum horizontal 270 Lumens minimum vertical SCRL 100V DC/AC 33W Main Filament 8,000/1,000 hour Rated Life Bulb Clear 60mm Bayonet Base B22D-3, Brass, Bright Nickel Finish 105 Lumens main filament 92 Lumens aux filament |
WARRANTY: All lamps are warranted for the life in hours specified for each part number.
Incandescent Lamp, Dual Filament, Dual Contact, 2 pin
 SL28DC, 2 Pin |
SL28DC Filament 1: 12V DC/AC 12W 1.0A Filament 2: 16V DC/AC 6W 1.0A 12,000 Hour Rated Life Bayonet Base BA15D, Brass, Bright Nickel Finish Bulb S11 Resistant to High Vibration and Electrical Spikes |
| Lamp |
GEMS PN |
Dual Contact Bayonet Socket Lamps |
| 6V 2W |
SL-13D |
Signal, 6V, 12W, single filament, 12000 hr life |
| 12/16V 16/12W | SL-17 |
Signal, 12V, 16W, 16V, 12W dual filament/outage indication, 12000 hr life |
| 12/16V 16/12W | SL-17T |
same as SL-17 with wire pigtails |
| 12/16V 24/12W | SL-21 |
Signal, 12V, 24W, 16V, 12W dual filament/outage indication, 12000 hr life |
| 110V, 25W |
SL-33 |
Signal, 110V, 25W, single filament, 10000 hr life |
| 12/12V 16/24W | SL-34 |
Signal, 12V, 24W, 16V, 12W dual filament/outage indication, 12000 hr life |
| 12/12V 24/24W | SL-35 |
Signal, 12V, 24W/24W, dual filament, 8000 hr life |
| 12/16V 12/6W | SL28DC |
Signal, 12V, 12W, 16V, 6W, dual filament/outage indication, 12000 hr life |
| 100V, 33W |
SCRL |
Signal, 100V, 33W, dual filament, 9000 hr life |
| 120V, 10W |
RR120.10DC-SF |
Lamp, 120V, 10W, single filament, frosted glass, 5000 hr life |
CALL FOR PRICING 904-230-2840
