Gemstar Array 8 inch (200 mm) Diameter, LED Signal Lamp, 4 Color, Light Out

GS-A84-LO1    8 in diameter, single color Gemstar Array in red, yellow, green, white
DC, Light Out, Compatible with VHLC Control, EC4, EC5, or equivalent

GS-A84-LO2   8 in diameter, single color Gemstar Array in red, yellow, green, white
DC, Light Out, Compatible with Siemens Control or equivalent



GS-A84-LOx white

GS-A84-LOx green

GS-A84-LOx yellow

GS-A84-LOx red

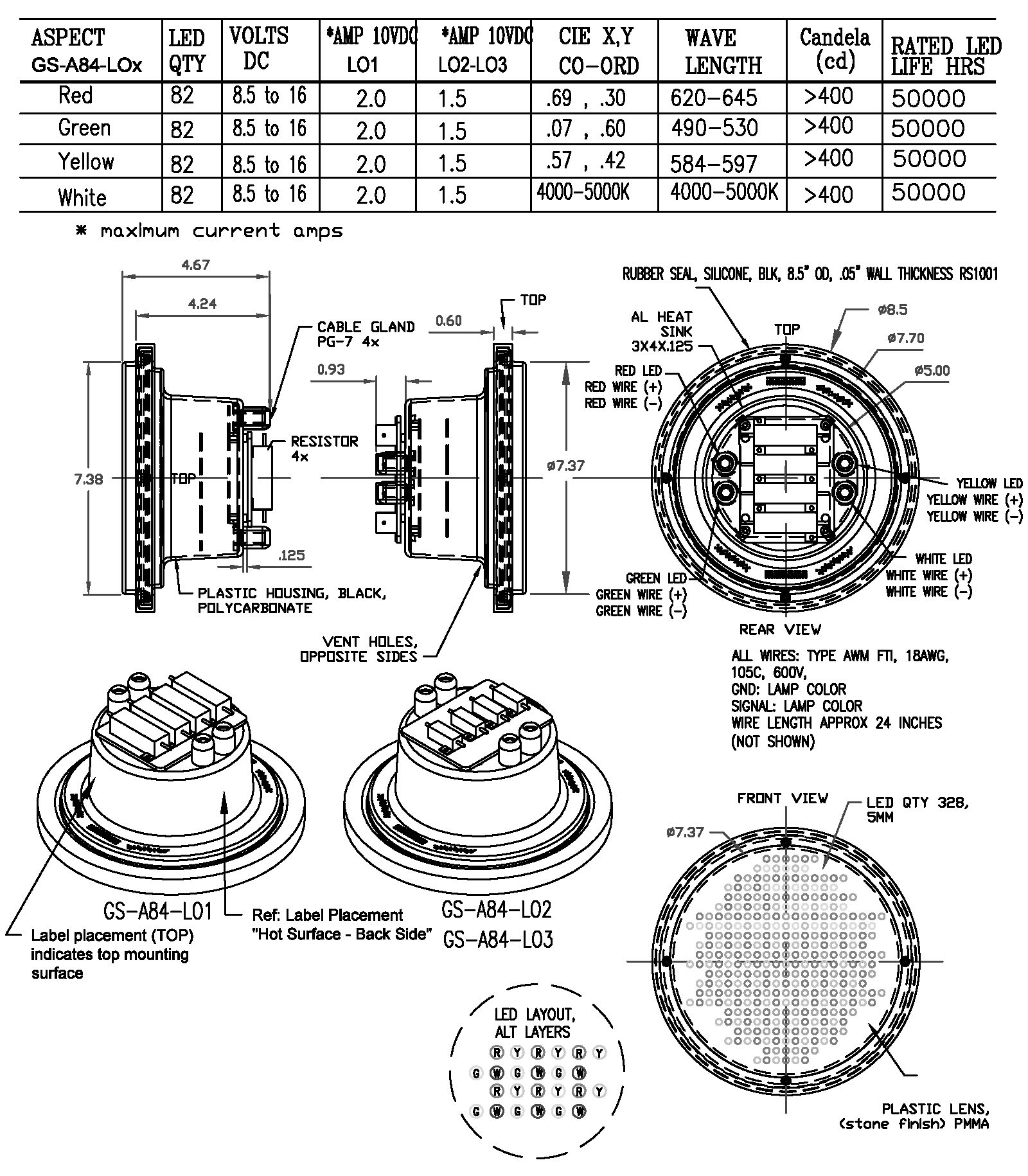

GS-A84-LOx is a 4 color LED, 8 inch diameter light out capable signal display

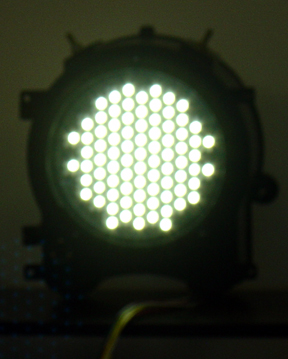

Compatible with Safetrans CLS-20R and Unilens dwarf signal heads
LED colors:  red, yellow, green, white

2 wire termination, polarity reversible, 8 wires (2 per color)
Operational temp: -40C to 70C
Nominal voltage: 10-12VDC
Independent and separate aspect operation, no common ground or signal

Warning: Battery operation of the LED lamp may be harmful to the signal lamp due to voltage reduction resulting from current drain causing LED light out.  If a test/back up battery is required for short duration lamp operation (<8 hrs) suggested minimum battery operation at 12VDC/30W requires 40 amp-hrs and cold cranking current to be 3.0A. DO NOT OPERATE LAMP WITH BATTERY CHARGER.
Suggested operation/test of the signal lamp, off the compatible control unit, is with 12VDC, 30W-60W Power Supply.


Meets AREMA requirements for cold filament, hot filament, inrush current, and lamp off

Weight 2.4 lbs

               GS-A84-LO1,  GS-A84-LO2, GS-A84-LO3


CALL FOR PRICING  904-230-2840
