GALU-GS-1 Gate Arm Light, Red, LED
CALL FOR PRICING 904-230-2840

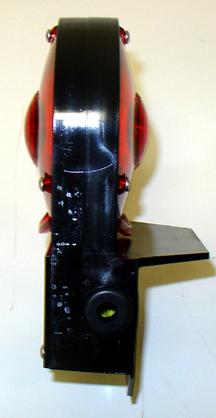

GALU-GS-1, Gate Arm Light
LED, Gemstar, red, double sided, GS-2R
8.5V to 40V
0.25A at 10VDC
Rated Life is 50,000 hours
Red Prism Lens, 4 inch diameter
Junction Box
2 wire, AC or DC operation
A two sided standard Gemstar LED Gate Arm is placed either as a new unit or as a 1 for 1 replacement on an exsisting unit. This is a 1 watt LED that utilizes 250 ma @ 10V operating in the 8.5 to 40V range. Life expectancy on these LED's depending on environmental conditions should be 50,000 hours of operation. Package is completely assembled.
GALU-GS also available in 3 Pack and 6 Pack packages.
Installation Instructions
LED, Gemstar, red, double sided, GS-2R
8.5V to 40V
0.25A at 10VDC
Rated Life is 50,000 hours
Red Prism Lens, 4 inch diameter
Junction Box
2 wire, AC or DC operation
A two sided standard Gemstar LED Gate Arm is placed either as a new unit or as a 1 for 1 replacement on an exsisting unit. This is a 1 watt LED that utilizes 250 ma @ 10V operating in the 8.5 to 40V range. Life expectancy on these LED's depending on environmental conditions should be 50,000 hours of operation. Package is completely assembled.
GALU-GS also available in 3 Pack and 6 Pack packages.
Installation Instructions
6.9 inches x 4.5 inches, 4 inch OD lens
Installation Hardware (GALU-GS-1):
2 ea wire nuts for electrical connection
4 ea Tek square head screws to mount light to arm
4 ea #8 x 3/4 Phillips oval head screws for lens cover
Weight .7 lb
