Gemstar Bayonet Socket LED Lamp for Railroad Signal Lights

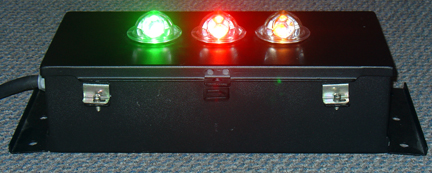

LED_lights.                         STS-3P_on.

VERTICAL AND HORIZONTAL POSITION LED bayonet lights, LOW ENERGY, 50,000 HOUR LIFETIME, HIGH BRIGHTNESS, AVAILABLE IN GREEN, YELLOW, RED, WHITE AND BLUE.

The GemStar«  LED is a product designed as a 1 for 1 replacement for a standard 12 volt bayonet based incandescent lamp.  Bayonet style, BA15S, BA15D, BAY15S and BAY15D.  The LED can be ordered as a one sided or two sided unit with the desired bayonet base depending upon the desired application. The GemStar«  is a 1 watt for single sided LED, and 2 watt for double sided LED, designed to operate in a range of 8.5 to 40 volts AC/DC.  This long life, energy efficient LED has an expected life of 50,000 to 100,000 operating hours if the unit is operated properly within the design characteristics.  They are designed as a retrofit product for various rail road signal and lamp applications. When retrofitting special attention and care should be taken in addressing focal point and alignment for best results. If needed VELCORP assistance should be requested.  These LEDs are available in RED, YELLOW (Amber), BLUE, GREEN, AND WHITE. They also can be ordered in a 90║ off and in a 90║/30║ version adapted to signal with a canted socket head.

NOTE (1): when ordering please designate whether BA15 socket or BAY15 socket with offset pins is required.



GS1-1.
GS-1( ) single sided LED,
single contact base
GS1-2.
GS-2( ) double sided LED,
single contact base

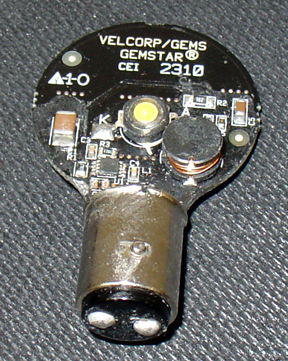

GS2-1.
GS-1( )-DC, 1 side, or
GS-2( )-DC, 2 side, LED,
dual contact base
HGS1.
HGS-( ), Horizontal LED,
single contact base
HGS1.
HGS-( )-DC, Horizontal LED,
dual contact base


SAMPLE DRAWINGS - see above NOTE (1):

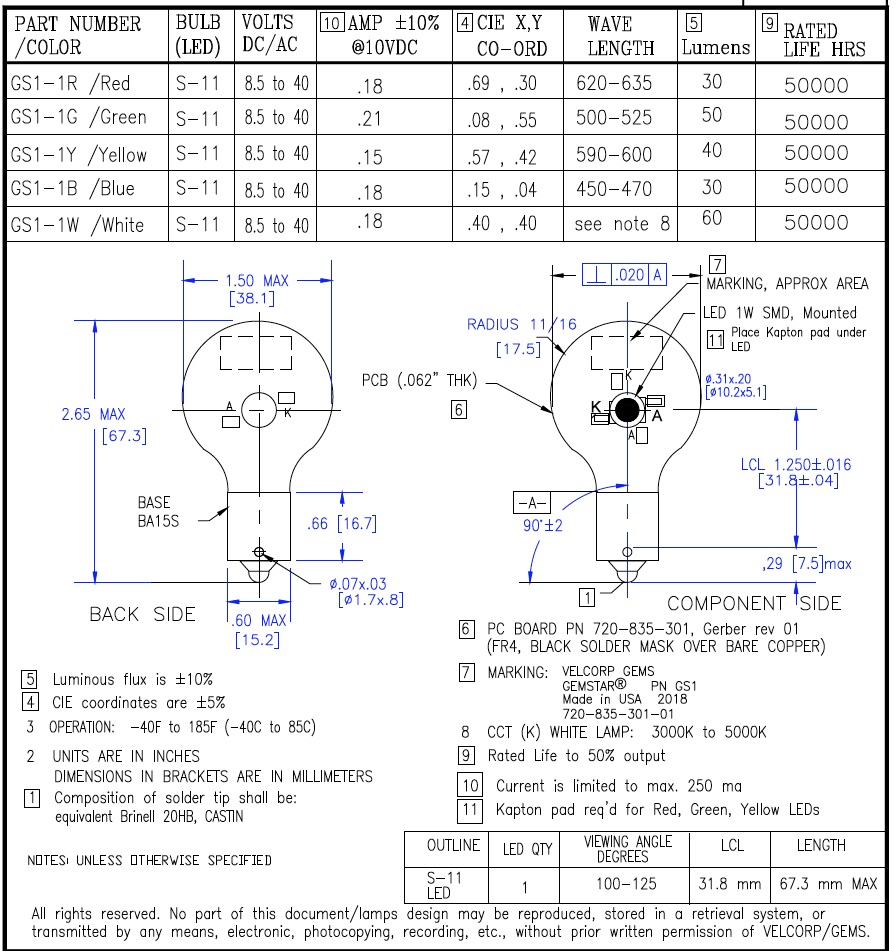

  GS-1( ) single side, single contact bayonet base (BA15S shown)
   coversheet_GS1-1_D.04.

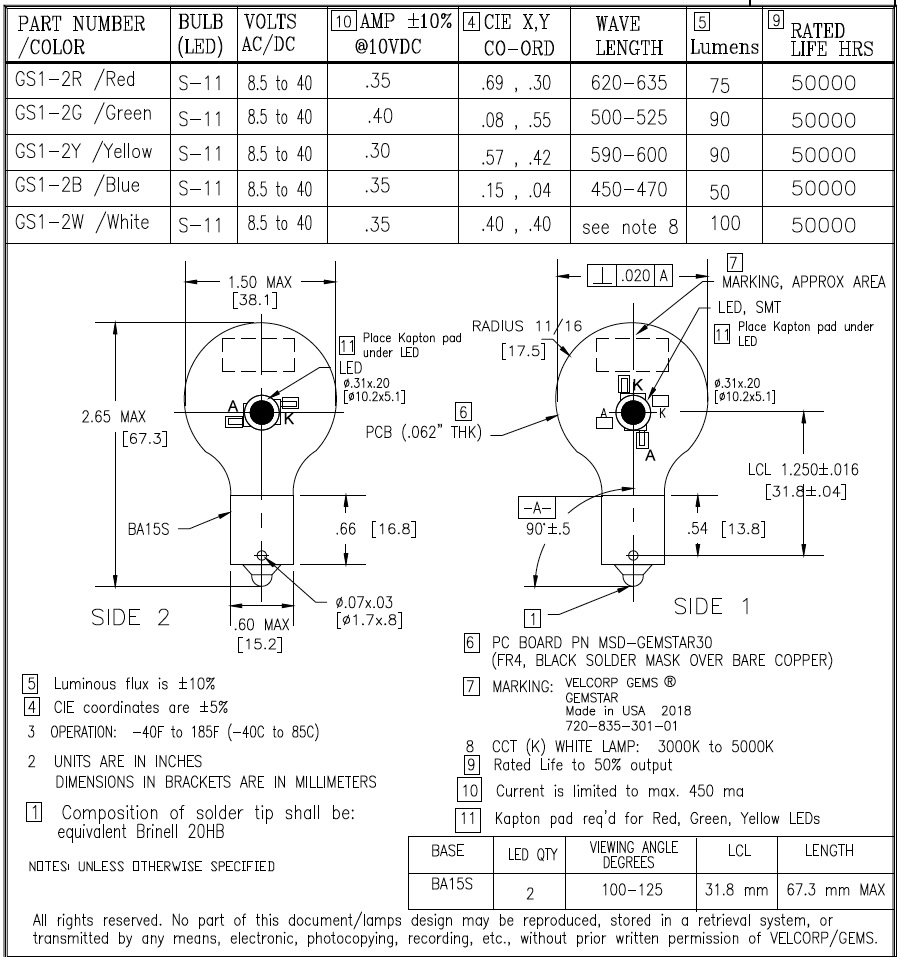

  GS-2( ) double sided, single contact bayonet base (BA15S shown)

cover_GS1-2_D.03.

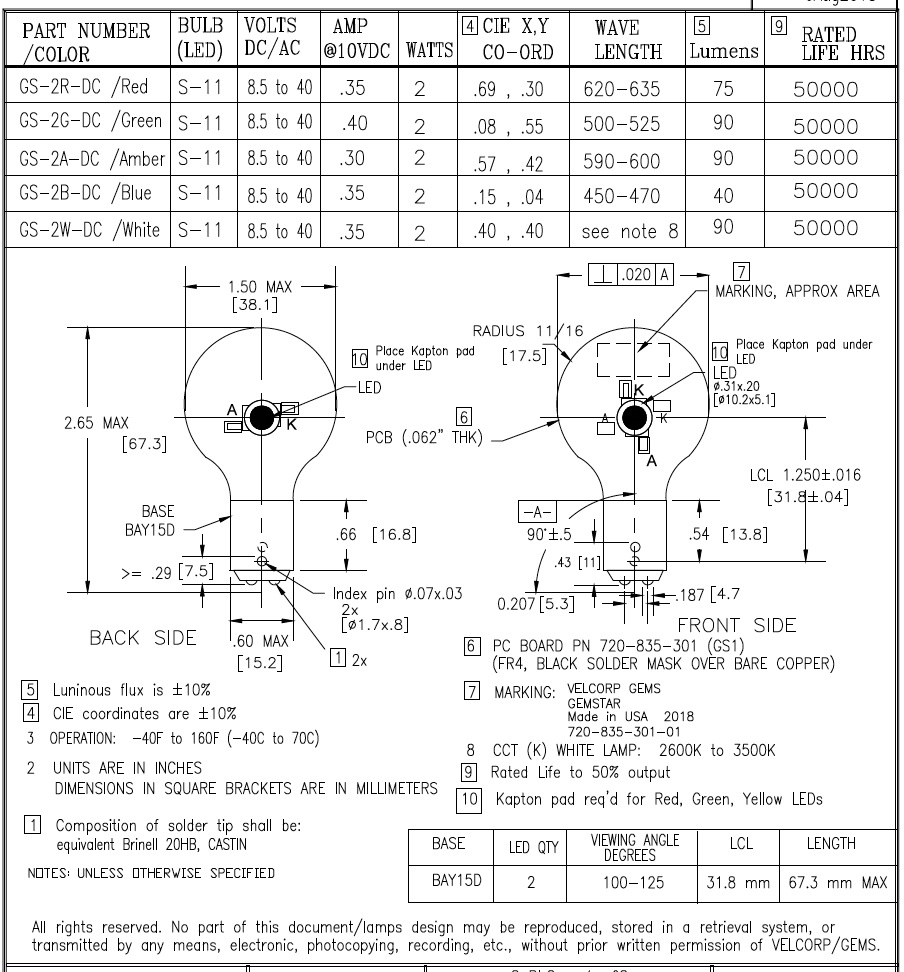

  GS-1( )-DC single side, dual contact bayonet base (BAY15D shown)

         cover_GS2-1_D.02.


   HGS-( ) Horizontal Gemstar, single contact base (BA15S shown)

coversheet_HGS1_C.02.


   HGS-( )-DC Horizontal Gemstar, dual contact base (BA15D shown)
    coversheet_HGS2_D.01.


CALL FOR PRICING  904-230-2840
