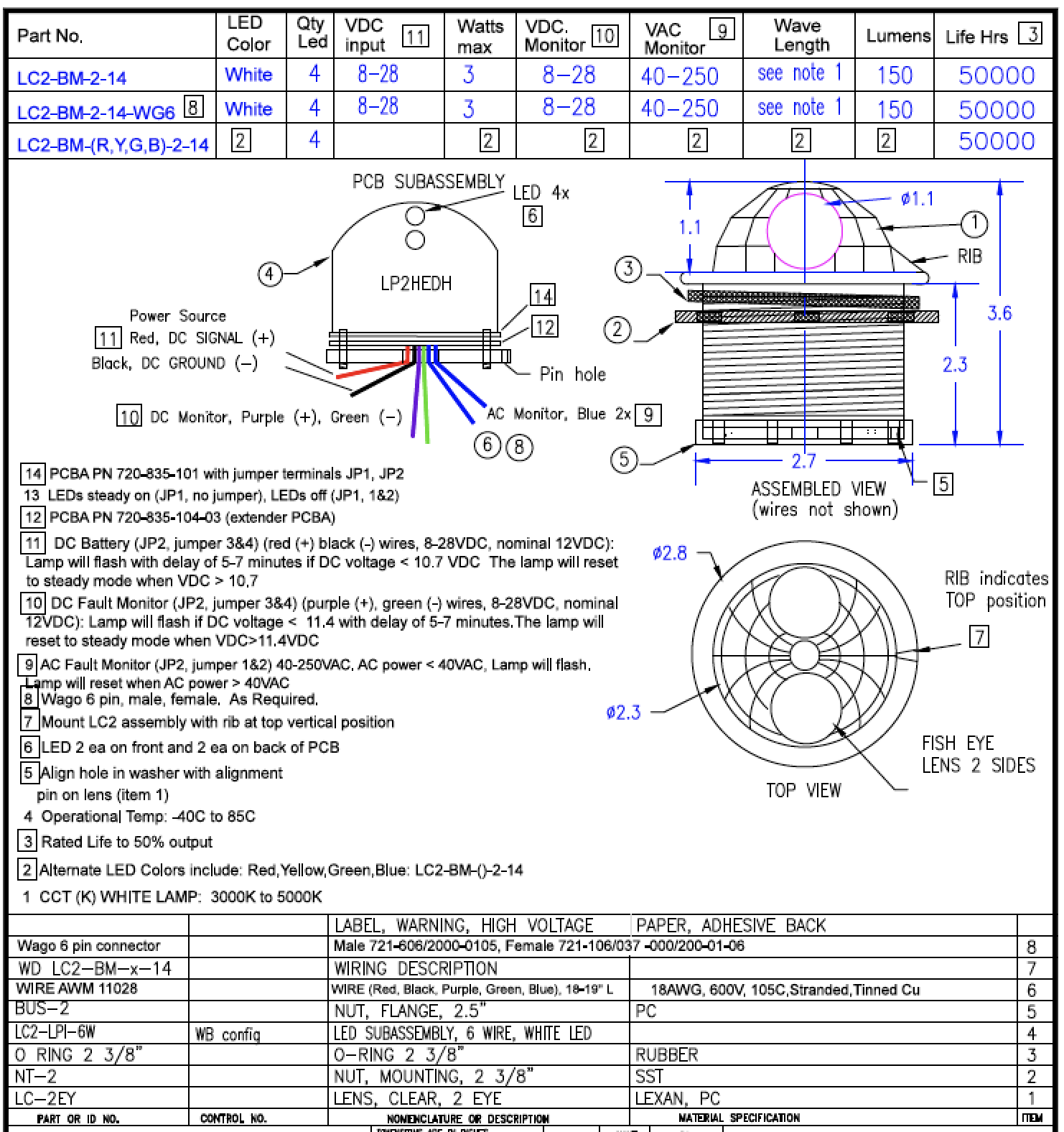

LC2-BM-2-14
Power Indicator, 6 Wire, Dual DC and AC Fault Monitor

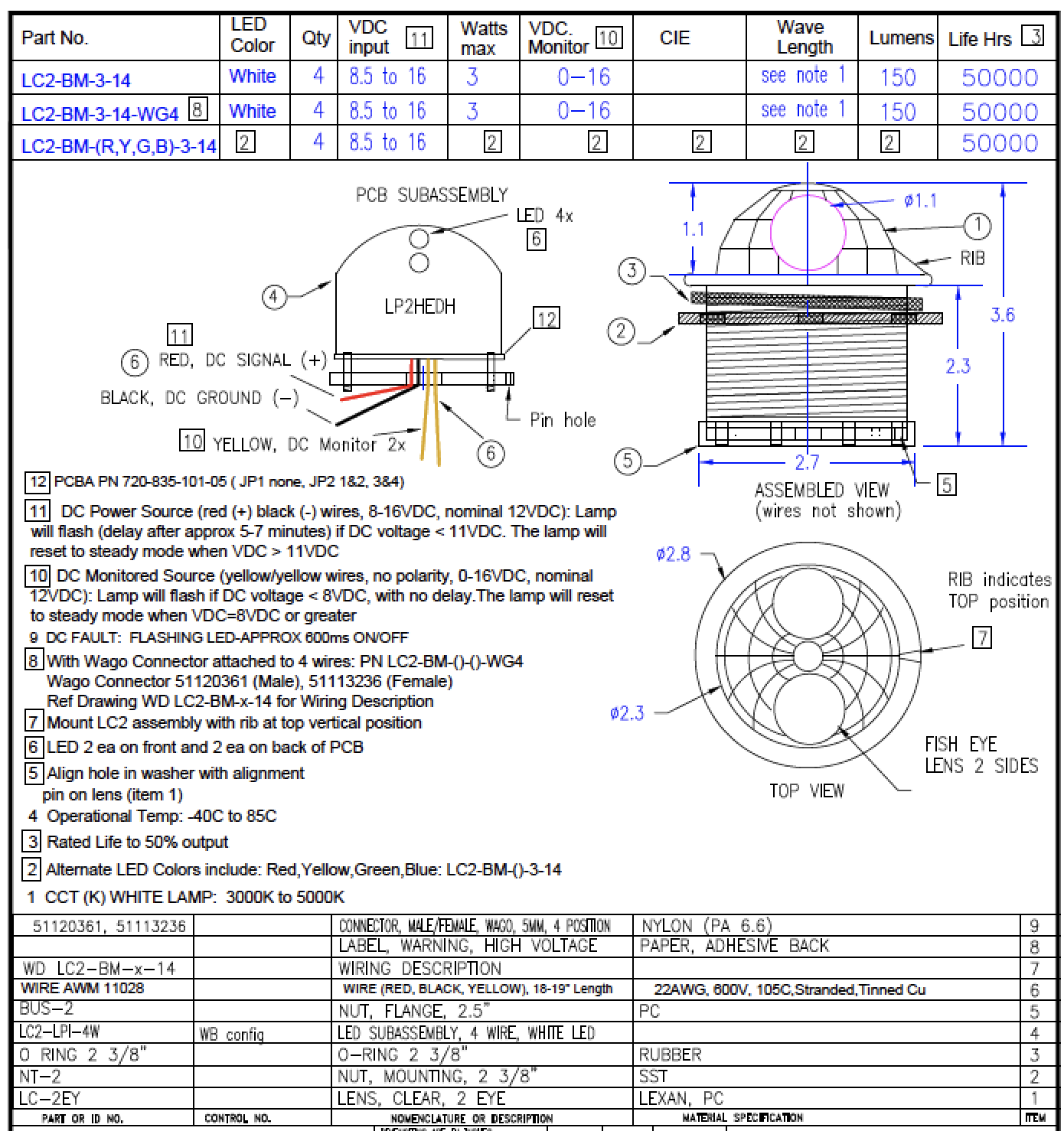

LC2-BM-3-14 Power Indicator, 4 wire, Dual DC Fault Monitor
(Operation Mode: Steady On - Normal/Flash - Fault)
LC2-BM-3-14 Power Indicator, 4 wire, Dual DC Fault Monitor
(Operation Mode: Steady On - Normal/Flash - Fault)
CALL FOR PRICING 904-230-2840
 LC2-BM-2-14 6 wire Monitor - Dual DC Power, AC Power |
LC2-BM-3-14 4 wire Monitor - Dual DC Power |
Both Battery Monitor power indicators monitor dual DC power sources and operate off 12 VDC nominal. The LC2-BM-2-14 also monitors AC power.
No light present
indicates total loss of power. The units come with and without
the WAGO wire connectors.
LC2-BM-2-14
Weight .38 lb
Operation: 12VDC, nominal
Available with or without 6 wire Wago Connector
INSTALLATION
____________________________________________________________________________________________________
LC2-BM-3-14
Weight .38 lb
Operation: 12VDC, nominal
Available with or without 4 wire Wago Connector
INSTALLATION
VELCORP GEMS
1293 Energy Cove Ct.
Green Cove Springs, Florida 32043
Office: 904-230-2840
FAX: 904-230-2938
Email: rrlights@velcorpgems.net
Weight .38 lb
Operation: 12VDC, nominal
Available with or without 6 wire Wago Connector
INSTALLATION
____________________________________________________________________________________________________
LC2-BM-3-14
Weight .38 lb
Operation: 12VDC, nominal
Available with or without 4 wire Wago Connector
INSTALLATION
VELCORP GEMS
1293 Energy Cove Ct.
Green Cove Springs, Florida 32043
Office: 904-230-2840
FAX: 904-230-2938
Email: rrlights@velcorpgems.net
