LC2-001WB Power Indicator, 2 Eye, 4 Wire  (Operation Mode: Steady On/Flash)


CALL FOR PRICING  904-230-2840


LC2-WB_pigtail.
LC2-001WB-( )
Pigtail wire leads

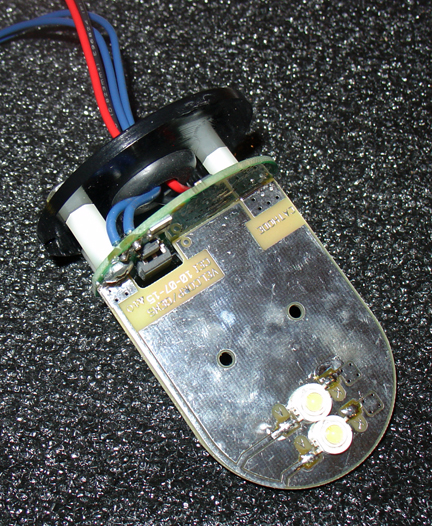

LC2-WB-wago.    IL-LC2-PO-FOI.   lens_2eye-1.
LC2-001WB-WG4-( )                IL-LC2-PO-FOI- ( )           LC-2EY
with Wago connector                    (W, R, G, Y, B)

This power indicator moitors either 120 or 240 VAC and operates off 12 VDC. With AC power present a steady light is present. With the loss of AC power the light flashes indicating failure.  No light present indicates total loss of power. This unit has been adapted for many applications requiring power monitoring. The unit normally is manufactured with white LED's but can be modified to other colors, Red, Green, Yellow, Blue. The unit comes in a water tight lens enclosure with optical enhanced "fish eye" lenses. The lens assembly or the the LED board can be ordered seperately. This unit comes with and without the WAGO 4 wire connector.


Weight .38 lb
Operation:  12VDC, nominal
Available with or without Wago Connector

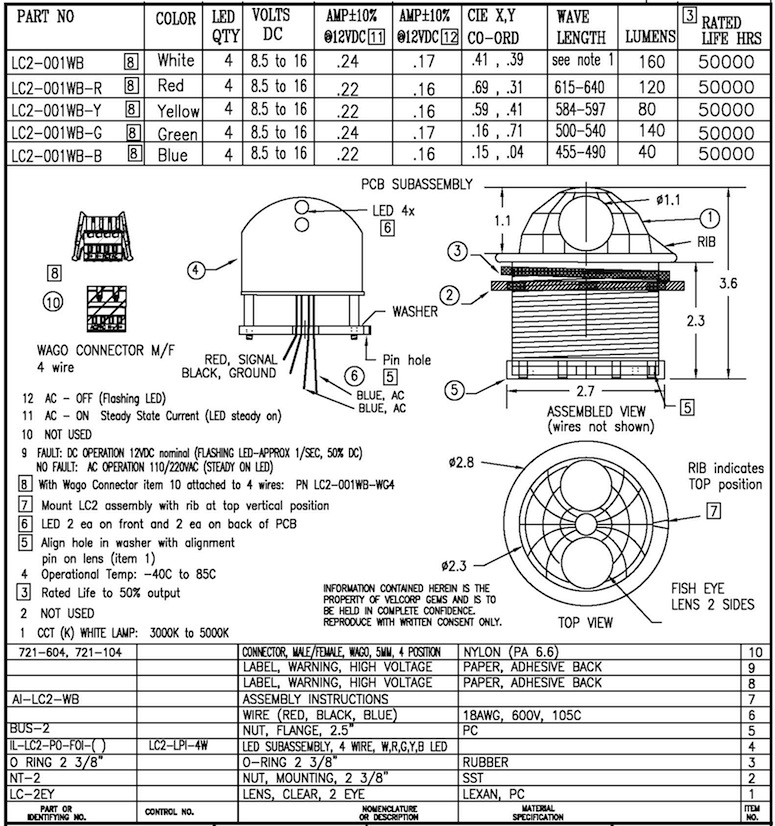

INSTALLATION

  cover_LC2-001WB_E.02.
