Gemstar Array 8 inch (200 mm) Diameter LED Signal Lamp, Single Color, Light Out

GS-A81-( )-LO1   8 in diameter, single color Gemstar Array in yellow, green, red, blue or white,
DC, Light Out, Compatible with VHLC, EC4 and EC5 Control or equivalent

GS-A81-( )-LO2   8 in diameter, single color Gemstar Array in yellow, green, red, blue or white,
DC, Light Out, Compatible with Siemens Control or equivalent



GS-A81-W-LOx

GS-A81-G-LOx

GS-A81-Y-LOx

GS-A81-R-LOx

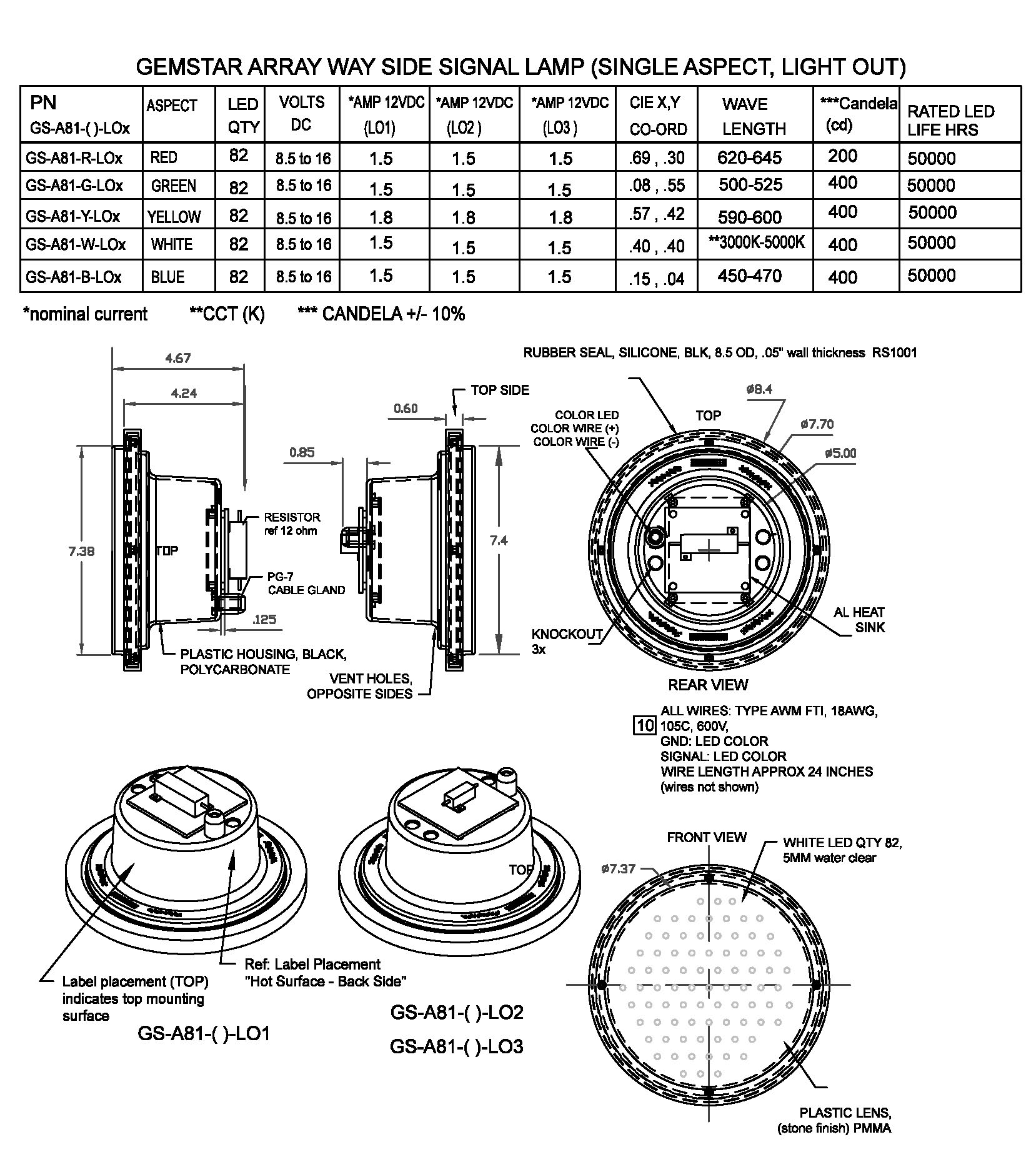

GS-A81-()-LOx is a single color LED, 8 inch diameter light out capable signal display
Compatible with Safetrans CLS-20R and Unilens dwarf signal
LED colors available:  red, yellow, green, white, blue
See above for control or relay compatibility

2 wire termination, polarity reversible
Operational temp: -40C to 70C
Nominal voltage: 10-12VDC

Warning: Battery operation of the LED lamp may be harmful to the signal lamp due to voltage reduction resulting from current drain causing LED light out.  If a test/back up battery is required for short duration lamp operation (<8 hrs) suggested minimum battery operation at 12VDC/30W requires 40 amp-hrs and cold cranking current to be 3.0A. DO NOT OPERATE LAMP WITH BATTERY CHARGER.
Suggested operation/test of the signal lamp, off the compatible control unit, is with 12VDC, 30W-60W Power Supply.

Meets AREMA requirements for cold filament, hot filament, inrush current, and light off
Meets AREMA 7.1.5 (in process)
Weight 2.2 lbs

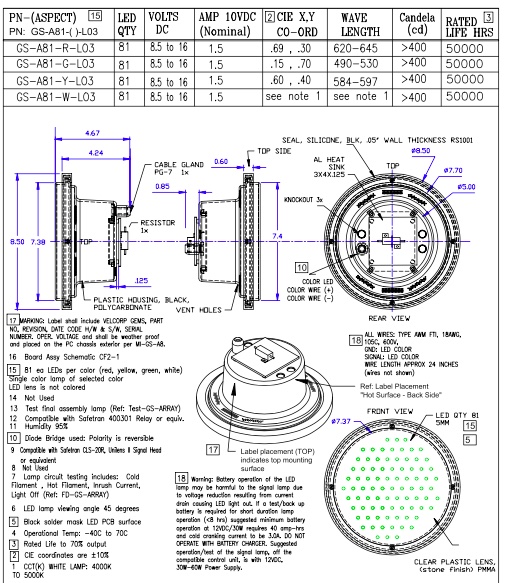

               GS-A81-( )-LO1,  GS-A81-( )-LO2, GS-A81-( )-LO3


CALL FOR PRICING  904-230-2840
