Gemstar Array 5 inch (127 mm) Diameter LED Signal Lamp with Light Out
LOx and LO1AD


GS-A51-( )-LO1, GS-A51-( )-LO2, GS-A51-( )-LO3   Railroad Wayside Application
5 inch diameter, single color Gemstar Array in Yellow (Y), Green (G), Red (R), Blue (B) or White (W),
8.5 to 16 VDC


GS-A51-( )-LO1AD  Railroad Wayside Application, 5 inch diameter, single color Gemstar Array in Yellow (Y), Green (G), Red (R), Blue (B) or White (W), 12VDC and 12VAC Operation (8.5- 16V) DC or AC






GS-A51-( )-LO1, Compatible with VHLC, EC4, EC5, or equivalent Control

GS-A51-( )-LO2, Compatible with Siemens Control or equivalent

GS-A51-( )-LO3,  Compatible with Light Out Relay Safetran 400301 or equivalent

GS-A51-( )-LO1AD,  AC or DC operation, 8.5-16V


GS-A51-( )-LOx with Lamp Out Capability

50,000 hour Life
Black solder mask background
Clear face, PMMA, Stone Finish

Chassis, Polycarbonate

2 wire termination, polarity reversible
Operational temp: -40C to 70C

41  LEDs, 5 mm, high brightness
Nominal voltage: 8.5 to 16 VDC
Available LED Colors: White, Red, Green, Yellow, Blue

Meets AREMA Part 7.1.5 (in process)

Weight 1 lb (0.45 Kg)

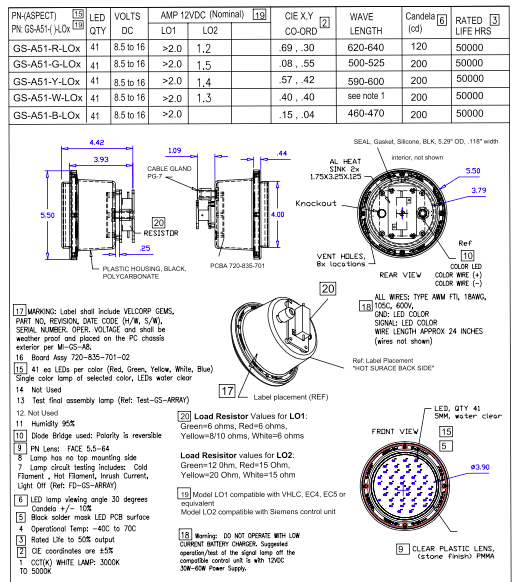

             GS-A51-( )-LO1, GS-A51-( )-LO2, GS-A51-( )-LO3
            cover_GS-A51-LOx_C.02.



GS-A51-( )-LO1AD  DC/AC Light Out Capability

50,000 hour Life
Black solder mask background
Clear face, PMMA, Stone Finish

Chassis, Polycarbonate

2 wire termination, polarity reversible
Operational temp: -40C to 70C

41  LEDs, 5 mm, high brightness
Nominal voltage: 8.5 to 16 VDC
Available LED Colors: White, Red, Green, Yellow, Blue

Meets AREMA Part 7.1.5 (in process)

Weight 1 lb (0.45 Kg)


GS-A51-( )-LO1AD  (AC/DC version)
GS-A51-LO1AD_A.01.
